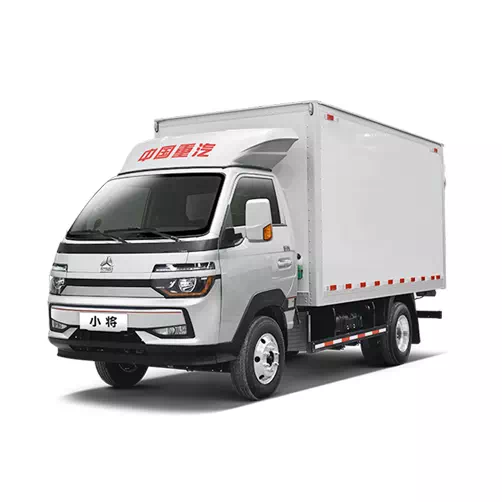

M Light Truck Series

Product Introduction

The Hanjiang M light truck series is a high-performance light truck specially built by Sinotruk for medium- and short-distance high-frequency transportation conditions such as urban distribution, urban and rural logistics, and cold chain transportation. The vehicle is equipped with a Weichai WP2.3Q140E62 engine with a maximum output power of 140 horsepower, abundant low-speed torque, fast acceleration response, and fully meets the National VI emission standards. It is green and environmentally friendly. It matches the efficient transmission system and lightweight high-load chassis, taking into account the fuel economy and transportation capacity of the vehicle, and adapting to complex and diverse urban operation scenarios. The newly designed cab adopts a humanized interior layout and intelligent configuration, bringing users a comfortable and convenient driving experience. It is an ideal transportation equipment for the new generation of logistics entrepreneurs.

Technical Parameters

Engine model	WP2.3Q140E62 Hanjiang M
Engine net power (kw)/speed (r/min)	99/3200
Engine maximum torque (Nm)/speed (r/min)	320/1400-2200
Gearbox	WLY5G32
Clutch (mm)	φ300
Rear axle model	130
Rear axle speed ratio	4.875/4.333
Fuel tank (L)	120
Frame section (mm)	180
Suspension (front spring and rear spring)	3/5+3
Tire	7.00R16 10PR

Vehicle Configuration

Engine model	WP2.3Q140E62
Appearance (mm)	5995x2200x3350
Wheelbase (mm)	3280
Foreground rear overhang (mm)	1180/1535
Factory-specified maximum total mass (Kg)	4495
Rated number of passengers (persons)	3
